CableQuick® Lock Assembly Type 2 - Wood

Swageless cable railing hardware for wood posts and 1/8" cable
Click to enlarge

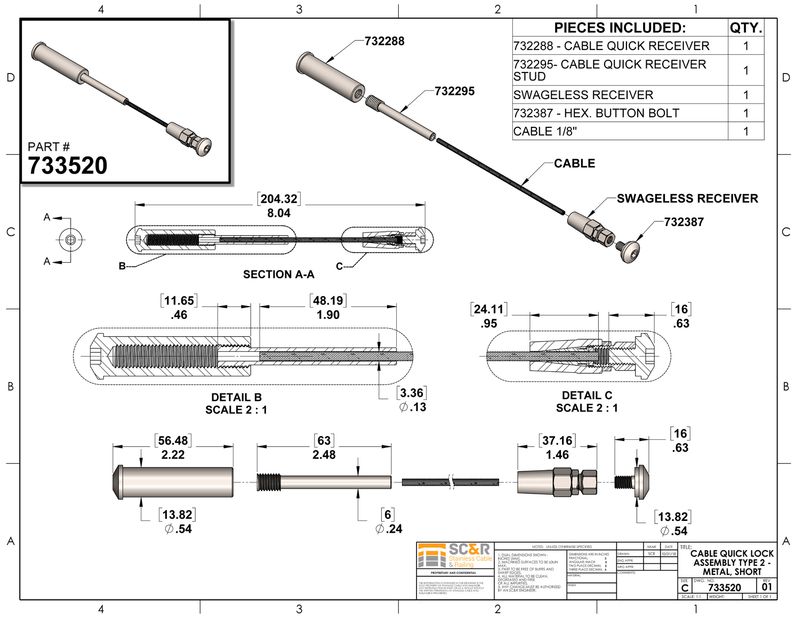

Swageless terminal end of cable railing assembly Low profile tensioning end for cable railing Swageless cable railing assembly type 2 specificationsSwageless cable railing assembly type 2 specifications for thick postsSwageless cable railing hardware for thick posts and 1/8" cableLow profile tensioning end for thick post cable railing

Item #cable-quick-lock-2-wood
Base Price$22.95
Receiver Stud
Cable Length
INCLUDES:1ea CABLE QUICK LOCK
       SWAGELESS RECEIVER
1ea CABLE QUICK TERMINAL
       BOLT HEX
1ea CABLE QUICK RECEIVER
1ea CABLE QUICK RECEIVER
       STUD (PRE-ATTACHED)
2ea WASHERS
CABLE INCLUDED

NO SWAGING TOOL REQUIRED
AvailabilityUsually ships in 3-4 business days
Quantity
This simple alternative to traditional assemblies allows you to avoid the swaging process altogether. Just thread and tighten these SWAGELESS CableQuick® LOCK ASSEMBLIES into place, and you'll have a secure hold on your cable in minutes; saving you time and money.

ASSEMBLY TYPE #2 uses a special receiver system to secure your cable to your posts. Unlike typical assembly options, this receiver is incredibly low-profile, allowing for a sleeker end result. This assembly package is intended for WOOD TERMINAL POSTS.

Recommended Quantity:

  • 11 assemblies needed for each cable run 36" high.
  • 13 assemblies needed for each cable run 42" high.
  • TIP: It's more economical to have longer cable runs that run continuously around corners so fewer fittings are needed.
This assembly comes with 1/8" 1x19 Cable, which is our thinnest, most rigid, and most popular cable size for residential applications.

While this assembly saves you the trouble of swaging, you'll still need to cut your cables. Visit our store to purchase some CABLE CUTTERS.

Note: Stainless Steel is highly resistant, but not impervious to the elements, and requires minimal maintenance for ideal results. We recommend applying Passivator to all exposed stainless steel components at the time of installation. In addition, apply Boeshield T9 if within 10 miles of a marine environment to further protect the stainless steel. Learn more about these products and general stainless steel care on our Cleaning & Maintenance Page.

Check out our WORKSHEETS or FAQ if you need any help. We also have some deck railing designs and other YouTube videos about cable railing to help you find inspiration. Call us any time at 1-888-686-7245 (RAIL) or email us at quotes@stainlesscablerailing.com. We are happy to help anyone with questions or concerns and will respond within 24 hours.
