Our line of

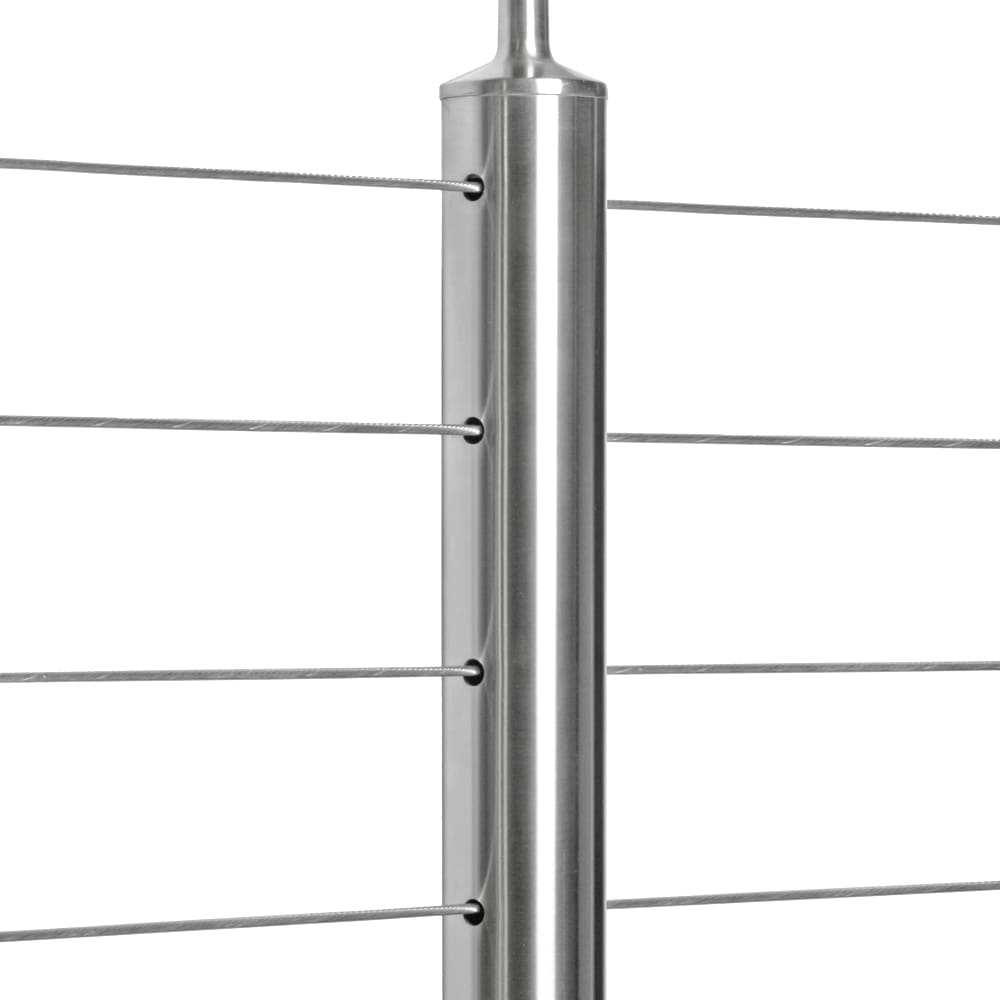

Round Marine Grade Stainless Steel Posts offers not only a shape alternative to our square posts, but also boasts the naturally sturdier structure of a cylindrical design. Use as intermediate posts in your cable railing run.
Details:
- Brushed Finish 316 Marine Grade Stainless Steel Intermediate Post

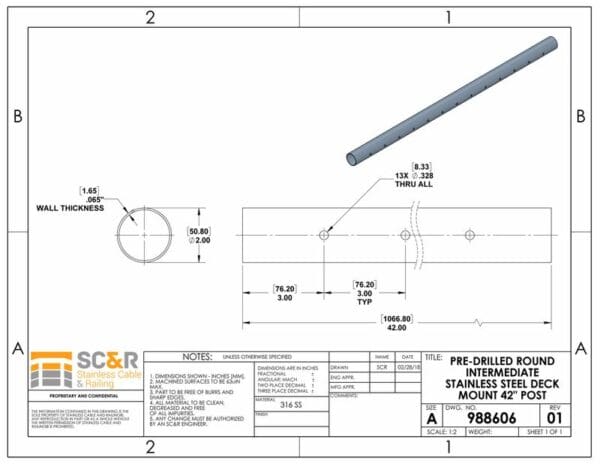

- Dimensions: 2in OD with 1.6mm wall thickness. For Cable Railing Systems at 42in Rail Height
- Pre-Drilled for Deck Mounting on Level Surfaces
- Drilled Hole Specifications
Qty: 13 drilled holes
Size: 21/64in thru
Spacing: 3in from bottom of post

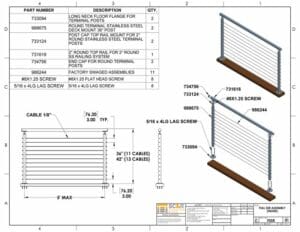

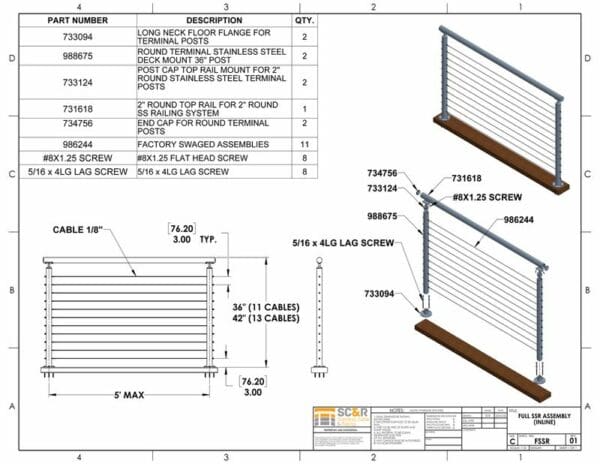

See Diagram above for possible Drilling configuration.
If
PROFESSIONAL SWAGING SERVICE is used at both ends of the cable run: Use
DECK OR FASCIA MOUNT TERMINAL POSTS for every post in your rail, including double offset posts at the corners. This will allow the attached fitting to pass through every post in the system.
If
HAND SWAGING your assemblies
(RECOMMENDED): Minimum of
2 DECK OR FASCIA MOUNT TERMINAL POSTS are required for each cable run (wherever your cable begins and ends). If your cable run also has 90 degree corners, use double
INTERMEDIATE POSTS at each corner. Use
DECK OR FASCIA MOUNT INTERMEDIATE POSTS spaced evenly (4' Max) for the remainder of the posts.
CABLE CRIMPERS and
CABLE CUTTERS are required.
Note: Stainless Steel is highly resistant, but not impervious to the elements, and requires minimal maintenance for ideal results. We recommend applying
Passivator to all exposed stainless steel components at the time of installation. In addition, apply
Rust Rescue if within 10 miles of a marine environment to further protect the stainless steel. Learn more about these products and general stainless steel care on our
Cleaning & Maintenance Page.
For design assistance, call us any time at
1-888-686-7245 (RAIL) or email
quotes@stainlesscablerailing.com. Fax us a sketch or fill out the
ESTIMATE REQUEST FORM for a free estimate. You might also want to check out our
cable railing videos and
WORKSHEETS.
Product # 988606, 714294, & 714300
