CABLE RAILING SYSTEMS: SURFACE MOUNT TOGGLE END

The Surface Mount Toggle End fitting is the terminal end of our SURFACE MOUNT TOGGLE ASSEMBLY. This assembly requires 2 Phillips Pan Head Screws (sold separately) for installation: #12 x 1.25 for 1/8" fittings or #14 x 1.25 for 3/16" fittings.

Benefits / Technical Information:

• Material: 316 Stainless Steel.
• Mounts directly to most surfaces, including metal and wood posts. Use 2 #12 x 1.25 Pan Head Screws for 1/8" fittings or 2 #14 x 1.25 Pan Head Screws for 3/16" fittings.
• 3" cable spacing is recommended. Order 11 terminal ends per run for 36" systems, or 13 per run for 42" systems.

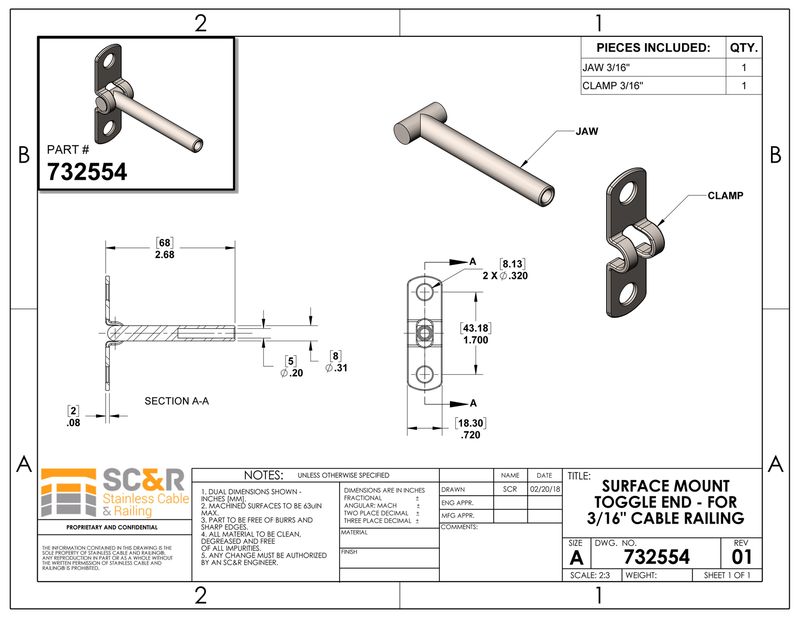

See number "2" in the above drawing to see how the SURFACE MOUNT TOGGLE END is used in the wire rope cable assembly.

STAINLESS CABLE & RAILING™ only offers the best and most affordable cablerail assemblies for your deck and balcony railing project. Enjoy your view without the painting, staining, and glass cleaning that is common with other handrails!

For this fitting, use either PROFESSIONAL SWAGING SERVICE or HAND SWAGING.

Note: Stainless Steel is highly resistant, but not impervious to the elements, and requires minimal maintenance for ideal results. We recommend applying Passivator to all exposed stainless steel components at the time of installation. In addition, apply Rust Rescue if within 10 miles of a marine environment to further protect the stainless steel. Learn more about these products and general stainless steel care on our Cleaning & Maintenance Page.

Order online. For assistance see MEASURING TIPS and WORKSHEETS tabs or call 1-888-686-7245(RAIL). We are happy to help you! STAINLESS CABLE & RAILING™ FITTINGS are the smart choice. Stainless Cable & Railing offers turnkey deck cable railings using aluminum posts, steel posts, stainless steel posts, and wood posts. Favorite among remodelers are the aluminum and stainless steel posts for both new construction and remodeling projects. Competitor aluminum posts are not as strong as Stainless Cable & Railing posts. We designed additional webbing inside each end post to resist the sideways deflection. The general contractor can be confident their posts are the top in the construction business and are fabricated specifically for cable railing system applications. Stainless cable rail systems start as low as $20 a lineal foot and are a terrific alternative to glass railing systems. Unlike glass infill systems Watch our videos on cable railing systems at Youtube.com.

Product # 732547 & 732554
