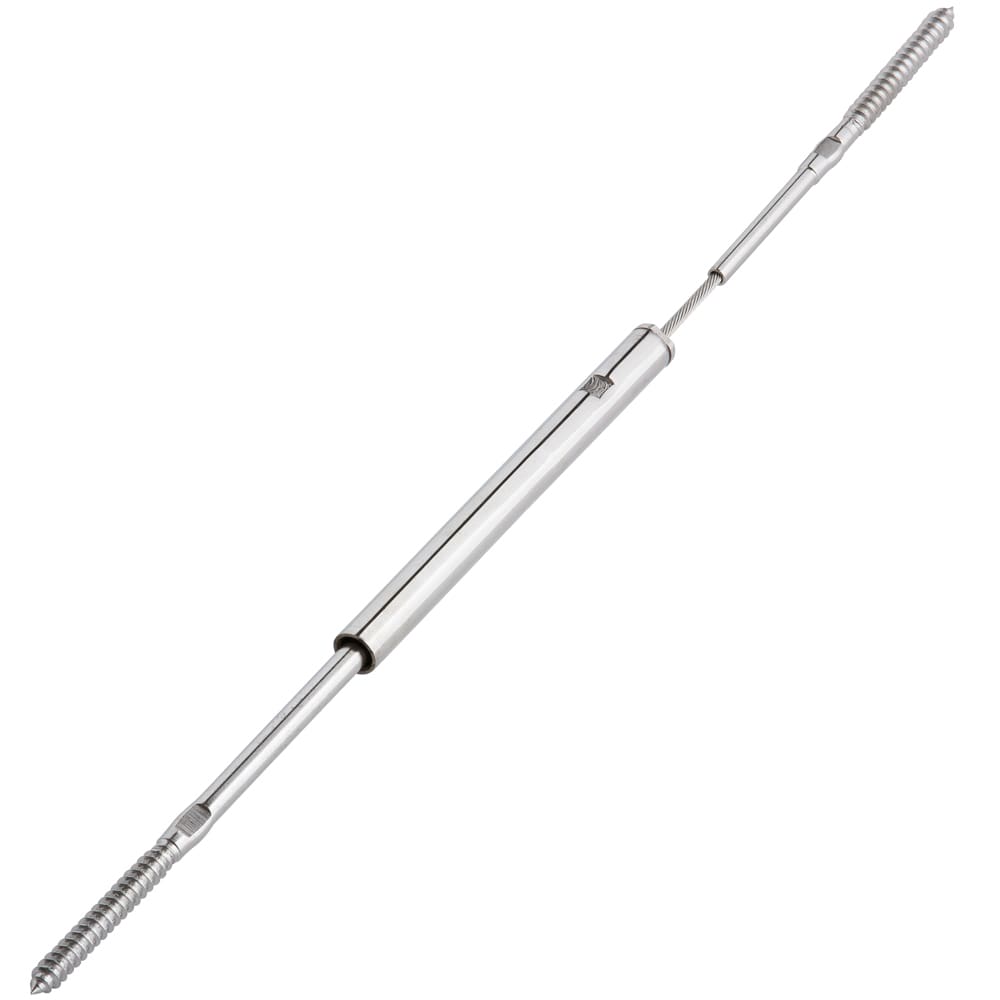

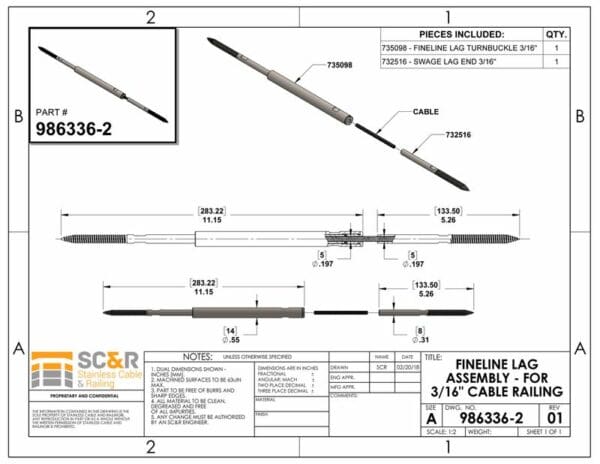

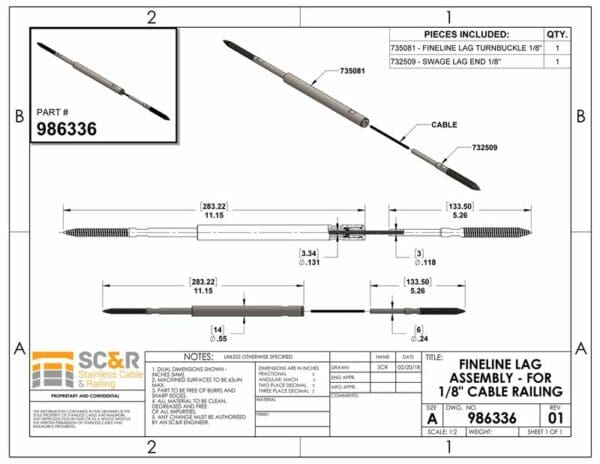

The FineLine™ LAG ASSEMBLY
has no exposed threads and the swage is internal within the turnbuckle body. The SWAGE LAG END
screws direcly into your 4x4 (Min.) post. Use either PROFESSIONAL SWAGING SERVICE
or HAND SWAGING
- 11 assemblies needed for each cable run 36" high.
- 13 assemblies needed for each cable run 42" high. TIP: It's more economical to have longer cable runs that run continuously around corners so fewer fittings are needed.
Parts and services needed to complete 1 assembly :
Note: Stainless Steel is highly resistant, but not impervious to the elements, and requires minimal maintenance for ideal results.
- 1x19 STAINLESS CABLE for straight runs and runs with slight bends or 7x7 STAINLESS CABLE for runs that have 90 degree corners.
- 1 FineLine™ LAG TURNBUCKLE + 1 SWAGE LAG ENDNote: For all Assembly lengths >50' (70' max) and/or runs from 0-70' with more than 1 90 degree corner, it is recommended to omit the SWAGE LAG END and use 2 FineLine™ LAG TURNBUCKLES instead to allow cable tightening at both ends of your run.
- PROFESSIONAL SWAGING SERVICE or CABLE CUTTER + CABLE CRIMPER tools to hand swage your wire rope assemblies.
We recommend applying Citrisurf 77 Plus
to all exposed stainless steel components at the time of installation. In addition, apply Boeshield T9
if within 10 miles of a marine environment to further protect the stainless steel. Learn more about these products and general stainless steel care on our Cleaning & Maintenance Page
