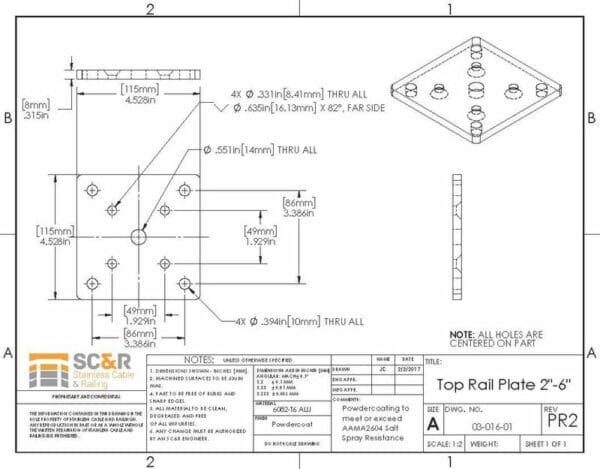

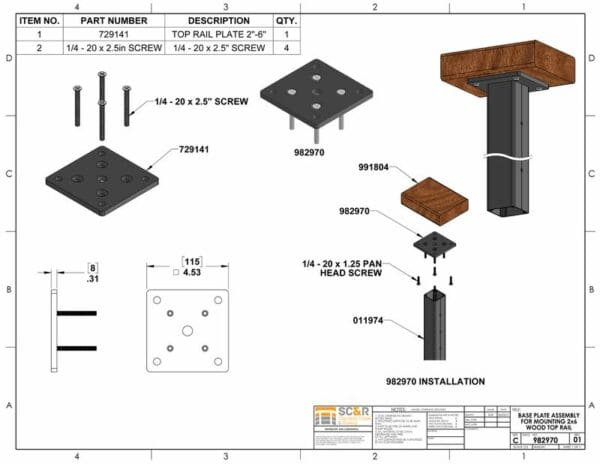

Base Plate Assembly for Mounting 2x6 Wood Top Rail

This base plate assembly attaches our Aluminum Posts to a 2x6 Wood Top Rail. Mounts directly to the top of any of our aluminum posts. Use #14 x 1.25" Phillips Pan Head Screws to attach plate to wood top rail.

Benefits / Technical Information:

1. Material: 6063 T6 grade aluminum alloy.
2. Powder Coat Finish: Baked on color coating that meets AAMA 2604 standards.
3. Anodized Finish: Brushed black or clear electrochemically-achieved protective outer layer for increased corrosion resistance.

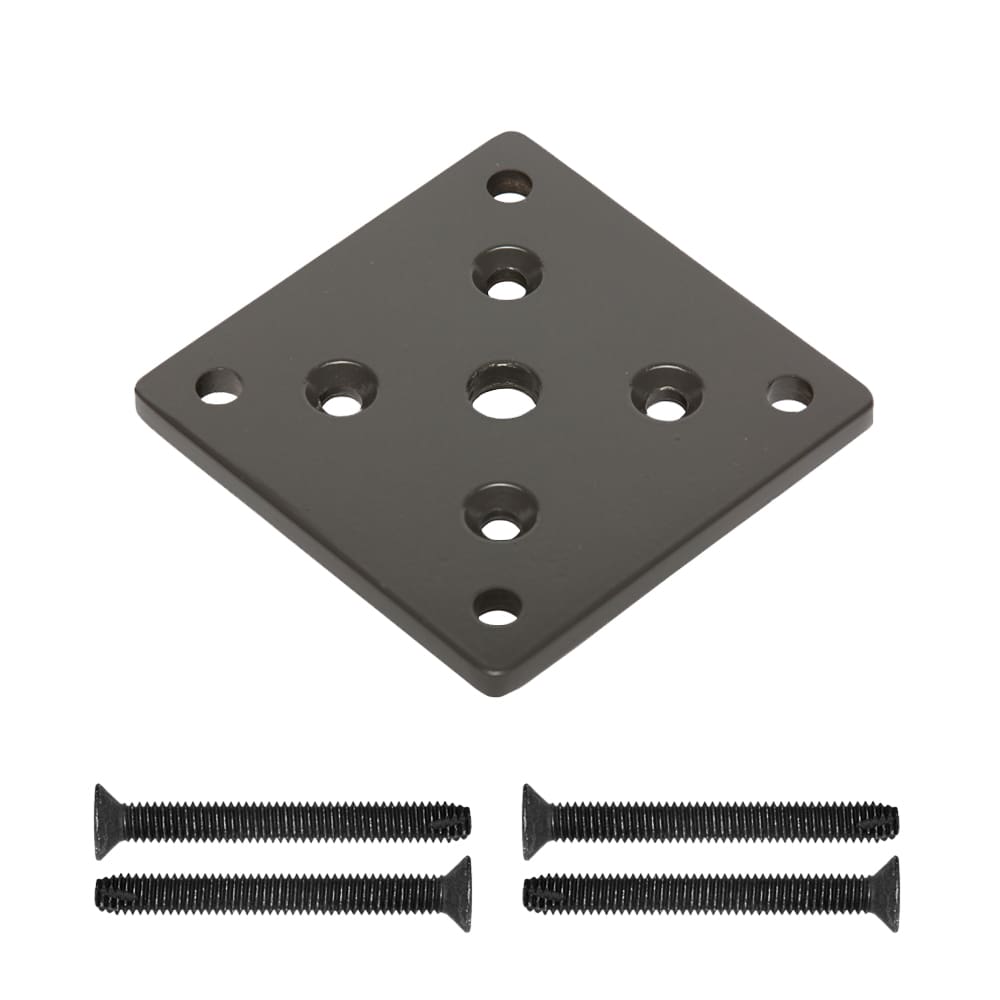

Includes

• 1ea ALUMINUM BASE PLATE
• 4ea 1/4-20 x 2 1/2in FLATHEAD PHILLIPS T/F SS SCREWS w/ Corrosion-Resistant Coating

If your wood top rail is only 4" wide, use our 2x4 Base Plate Assembly instead.

Product # 710111, 710593, 982970, 983458, 983847, 984127, & 984493
